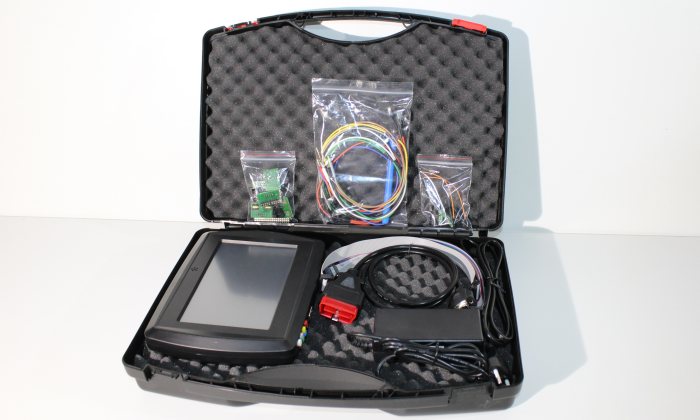

Main Features
- Professional tool for automotive workshops and chiptuners.
- Diagnostic, repair and reprogramming of engine and transmission control units.
- Complete solution on a single tool: Boot Mode / Bench Mode / OBD.
- Unique stand-alone alone operation: 7″ LCD with Touch Screen.
- Innovative user interface with built-in instructions.
- Inteligent built-in power-supply.
- Strong in-house research and development team.
- Constant support and regular updates.
The Protocols
- OBD for Toyota/Scion/Denso with Virtual Read Functionality.
- 1000+ original files on the database.
<
- World first automotive solution for Toyota/Leuxs/Scion DENSO based ecu’s on the market.
- Tested over 1000+ vehicles.
- Automatic MCU recognition (no need to select MCU).
- Automatic file size adjustment.
- Supports Reading and Writing of the external eeprom memory (93Cxx).
- Read, Write, Recover, Backup, Checksum verifcation and correction.
- Read, write and backup control units based on Tricore TC17xx MCUs.
- Automatic MCU & Memories detection and file size adjustment.
- Supports reading and writing of external flashes and external eeproms.
- Full read/write/backup (all content at once) or separated mode.
- Market unique ability to recover bad sectors due to interrupted reflash.
- Now supports BMW F-Series/GPT Protocol Password reading.
- Read, write and backup engine/transmission control units based on C167/ST10F MCUs.
- Automatic MCU & Memories detection and file size adjustment.
- MCUS Supported: C167; ST10F167; ST10F168, ST10F269, ST10F273, ST10F275, ST10F276, ST10F280, ST10F296.
- External Flashes Supported: 29F200 (-T/B), 29F400 (-T/B), 29F800 (-T/B)
- External Eeproms Supported: 9540, 9580, 95160, 95320, 95P08, 24C01, 24C02, 24C04, 24C08, 24C16, 93C46, 93C56, 93C66, 93C76, 93C86.
- Full read/write/backup (all content at once) or separated mode.
- Interface modes: Rx/Tx ; K-Line; Can Bus.
- Read, write and backup engine control units based on SH725xx MCUs.
- MCUS Supported: R5F72513R, R5F72544R , R5F72543R, R5F72546RH, R5F72533F , R5F72544F, SH72543F
- Correct MCU identication function.
- Read, write and backup engine control units based on SH705x MCUs.
- MCUS Supported: SH7052F, SH7053F, SH7054F, SH7055F, SH7055S, SH7058F, SH7058S, SH7059F.
- Correct MCU identication function.
- Read, write and backup engine control units based on MPC5xx MCUs.
- Automatic MCU & Memories detection and file size adjustment.
- MCUS Supported: MPC555, MPC556, MPC561, MPC562, MPC563, MPC564, MPC565, (MPC5xx with ‘SC’ Markings).
- External Flashes Supported: Am29BDD160G(-T/B), S29CD016(-T/B), S29CL016(-T/B), S29CD032(-T/B), S29CL032(-T/B), M58BW016x(-T/B), M58BW032x(-T/B), M58BW016F(-T/B), 28F800F3 (-T/B), Am29BL162, Am29BL802
- External Eeproms Supported: 9540, 9580, 95160, 95320, 95640, AT25128, AT25256.
- Automatic detection of external flashes with exchanged bus lines (data is read/written in transparent form).
- Full read/write/backup (all content at once) or separated mode.
- Read, write and backup engine control units based on MC68xxx MCUs.
- Automatic MCU & Memories detection and file size adjustment.
- External Flashes Supported: Am29BL802, 29F200 (-T/B), 29F400 (-T/B), 29F800 (-T/B), 2xAM28F512, 2xAM28F010, 2xAM28F020, 2xTN28F010
- Read, write and backup engine control units based on MPC55xx MCUs.
- Automatic MCU detection and file size adjustment.
- MCUS Supported: MPC5554, MPC5565, MPC5567, MPC5566, MPC5561, MPC5553, MPC5534, MPC5532, MPC5533, (MPC55xx with ‘SC’ Markings).
- Read, write and backup engine control units based on M32R/ECU MCUs.
- Automatic MCU detection and file size adjustment.
- MCUS Supported: M32170F(3/4/6), M32171F(2/3/4), M32172F2, M32173F2, M32174F(3/4), M32176F(2/3/4), M32180F8, M32182F(3/8), M32185F4, M32186F8, M32192F8, M32195F4, M32196F8.
- External Eeproms Supported: 93C46, 93C56, 93C66, 93C76, 93C86.
- Full read/write/backup (all content at once) or separated mode.
- Interface modes: Rx-Tx or CSIO.
- Read, write and backup engine control units based on MH7xxx/MH8xxx MCUs.
- No need to open ECU case (all connections are external).
- Automatic MCU detection and file size adjustment.
Versions
SUB (BOOT+OBD)
- All BOOT+OBD protocols included.
- Constant Support. Regular Updates. Anual subscription fee. One year Support and Updates included.
- Reads coded files (S2M). Writes coded files from Masters only (M2S).
MASTER (BOOT+OBD)
- All BOOT+OBD protocols included.
- Constant Support. Regular Updates. Anual subscription fee. One year Support and Updates included.
- Reads/Backups/Writes files in RAW mode. Can decode/encode files from/to SUBs.
MASTER (CUSTOM)
- You select the protocols to be included.
- Constant Support. Regular Updates. Anual subscription fee. One year Support and Updates included.
- Reads/Backups/Writes files in RAW mode.
