Full set JTAG adapter for Marelli ECUs + BDM frame adapter kit (MPC5xx)
Set includes:

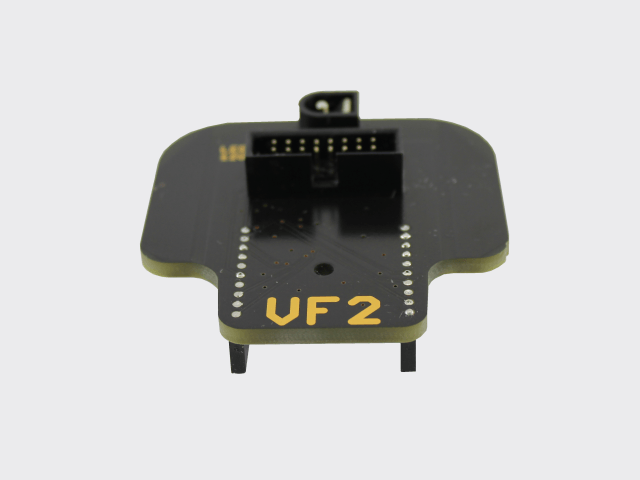

- 1x Universal frame adapter base board (BDM & JTAG)
- 1x MED9/EDC16/EDC7 adapter for BDM/JTAG base board (BDM MPC5xx module)
- 1x Siemens/Marelli adapter for BDM/JTAG base board (BDM MPC5xx module)
- 1x Delphi/Motorola adapter for BDM/JTAG base board (BDM MPC5xx module)

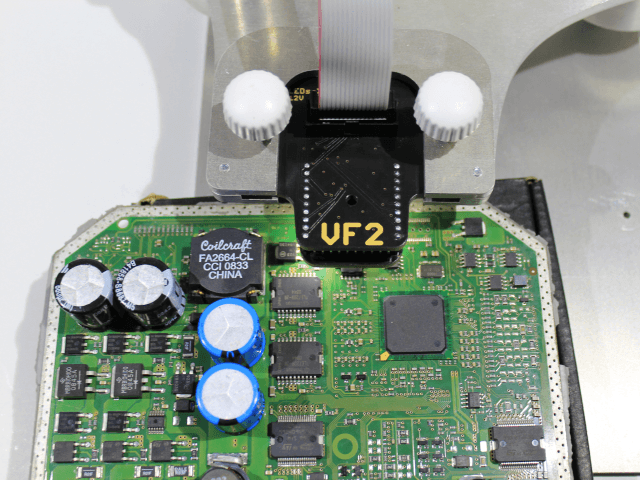

- 1x Marelli JTAG adapter for BDM/JTAG base board(JTAG MPC5xxx module)
Lower adapters can be rotated 0º, 90º,180º and 270º so that they better suit the different orientations of the debug port of the ECUs.
Special care taken to the visibility, LEDs selected not just for their brightness but also correct hue, our adapter PCBs are white underneath to better reflect light and contribute to a crisper view of the working area.
(To be used with the VF2 Flasher, suitable for standard 64mm wide frames, positioning frame not included)
